Tux meets Amiga, or Amiga emulation using UAE or E-UAE
Author: Tom Newsom
Published: January 30, 2008
Are you on old school Amiga user who gave up that most brilliant of operating systems for no other reason than it seemed during the middle to late 1990's as the platform was dead in the water and going nowhere fast after company after company bought, collapsed then sold the Amiga brand on? Have you longed for those days when innovation truly was innovation and the Amiga range of personal computers rose high above the competition in both sales and usability? If your answer to any and all of the above is yes then you have no doubt tried AROS. The AROS Research Operating System formerly known as the Amiga Research Operating System which is almost at the stage of usability and can in fact be installed directly to hard drive these days and has a growing wealth of applications. AROS is as close to the old philosophy as one is ever going to see. It is a wonderful project that every once erstwhile Amiga user, who for whatever reason fled the platform in days one by, should check out.
But this article is not about AROS, as good as it is. No. It is about true Amiga emulators. UAE and the newer E-UAE. There are others but their popularity is not as high as those two. Indeed, I don't think those others like fellow or xfellow, and a few more besides, are still maintained.
I still own an Amiga 1200 (A1200) which sits on my network plugging away. My children play the games on it. I have years old fidonet messages stored within YAM (Yet Another Mailer) as well as in archives stored for posterity but even with that machine available to me I simply love UAE, and more recently, E-UAE for no other reason than I can leave it running sat on screen 16 on my desktop available to do whatever it is I want to do on it.
I have always played with UAE from when it first came on the market. Back then it was called the Useless (or Unusable) Amiga Emulator [1] by some and for good reason. Back then it was as buggy a Hell and often times crashed without a good reason. Sometimes taking the whole OS with it as it crashed and burnt yet again. But as time rolled on UAE got better and better and more and more stable. Today it is totally usable and stable.
On checking for the latest version I stumbled across something calling itself E-UAE. I went to check it out mainly to see what it was about and in what way it differed to UAE. The main difference as far as I can see is that E-UAE uses the WinUAE core. On loading E-UAE for the first time other more subtle changes became apparent. The E-UAE control panel offers not only visual GUI differences but also usability changes. Other subtle changes make E-UAE my Amiga Emulator of choice now after years of UAE usage.
Both UAE and E-UAE have recently brought out new versions. As these are both Linux applications, unlike WinUAE, I will only be writing about things that concern them. Things that only work under the Microsoft OS are useless to us Linux based users anyway, unless of course you are masochist enough to run an emulated Amiga under WINE. Possible but ugly and quite probably slow.
UAE and E-UAE can be interchanged here as we go along this article. What applies to E-UAE also applies to UAE so to save me typing both names throughout the article I shall say that when I mention E-UAE you can simply replace it with UAE if your preference is towards that.
Both compile without errors on my x86_64 Bluewhite64 install. Though to get a scsi.device on the emulated Amiga side there are bits needed from the cdrtools sources. You need to at least compile cdrtools then copy a few bits from there to where ever your UAE or E-UAE sources are. Once that is done you are ready to compile UAE or E-UAE. This was not a problem for me but may be a bit of a challenge for our non-technical minded brothers and sisters. If requested I can outline the exact procedure but any one with aspirations to using an Amiga emulator should be able to figure it out without too much trouble. There is a script in both extracted archive source trees in src/ called install_libscg. This was horribly broken for me and steadfastly refused to copy the relevant files. On further inspection is turns out that to get a scsi.device on the Amiga side one needs an older, much older, copy of cdrtools or cdrecord. Version 2.0 in fact. This scsi.device is however not a requirement so getting the cdrtools thing sorted is not a requirement either. That said, I do recommend you read the README provided in both source trees.

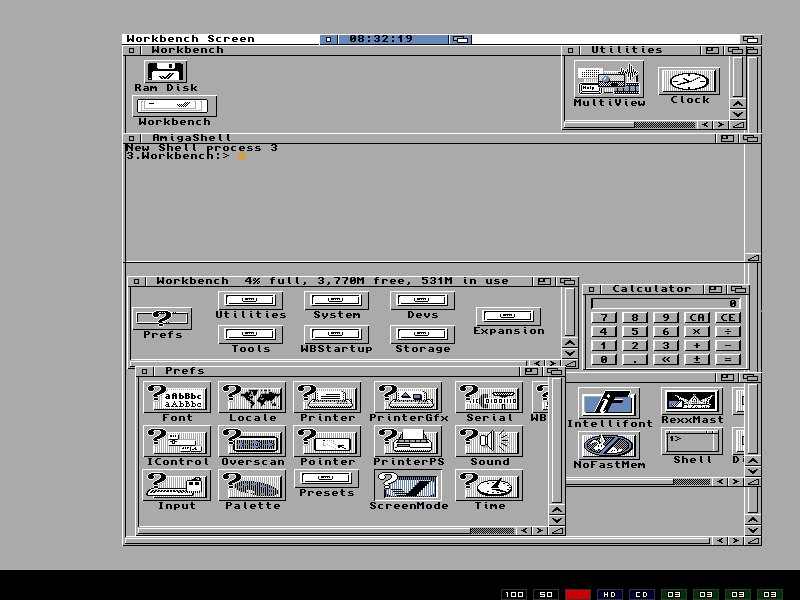

I created 3 virtual hard drives, which are really directories on the Bluewhite64 side. I called the virtual drives 'System', 'Work' and 'HDGames'. This was achieved by first creating those named directories on the Bluewhite64 side then pointing E-UAE to them in the hard drive preferences tab within E-UAE. Upon installing Amiga OS 3.1 from .adf files I had created on my A1200 along with the required kickrom which I also created via my real A1200 the Hard drive install option of Amiga OS 3.1 saw these virtual drives as Amiga hard drives and proceeded to install onto 'System'. This install, to hard drive, was simplicity itself. It installed without any problems. A bare Amiga OS is nothing exciting. In fact I would go so far as to say it is boring to look at.
Next I installed a TCP stack so I had at least got Internet access within E-UAE. I used AmiTCP which again installed without issue. After editing a few files within amiTCP I rebooted. A quick, very quick, reboot later and my Amiga emulator was online. My next step was to visit aminet and download a few useful, and not so useful but wonderful to have, applications that I have always enjoyed using. The list of files I downloaded from Aminet is too long to list them all, but a few worth mentioning are Picasso96, MagicWB, Toolmanager, MUI and GuiArc. Those 4 applications alone make for a much better Workbench experience.
This process of making the emulated Amiga like my real A1200 was coming along nicely. I hit google in an excited attempt to locate some pre-configured Workbench setups I had used before. These being AIAB (Amiga In A Box) and AmiSYS. Both had been updated since I last used them in ernest which is always a good thing to see. These wonderful bundles are add-ons for WinUAE which works fine on Linux providing one gets the zip archive not the .exe file, after some manual tweaking to fix Amiga side. The executable flag on some files on the Amiga side .info files (which are icons that hold information for the program they match up with. More on this issue later.), on the Linux based platform that basically gives UAE/E-UAE/WinUAE a lovely look and feel. I would go so far as to say AIAB brings the emulated Amiga to life.
Using UAE or E-UAE and AIAB or AmiSys negates the need to build up your own Amiga Workbench environment . For AIAB you will need a copy of the Workbench floppy disk in adf format from the Amiga installation set as well as a kick-start rom. These are available on the Internet but I will not be linking to them here as unless you actually have a paid for set of disks and a real Amiga then you are not legally allowed to use them. I had not used AmiSYS before and was delighted to see how close to my real A1200 install it was. After many years of using AIAB with UAE I have now switched allegiances and use E-UAE and AmiSYS. Be aware that if like me you have gone to the trouble of creating your own Workbench environment that both AIAB and AmiSYS both come with pre-configured hardfiles that act as Amiga hard drives. Not a problem really as one can keep your own work as a backup should anything go badly wrong with the AIAB (as it did) or AmiSYS installs.
The newer AIAB was more of a challenge to get installed and working as although installing it is not difficult once installed under a Linux OS it quite simply refused steadfastly to allow both UAE and E-UAE to boot up the Amiga. Bummer, thought I. Previous versions had always worked without error so why did the newer version not? Okay, the error was printed on the screen. "devs:monitors/uaegfx was not executable." To recover from this I created a hard drive within the emulated environment then installed Workbench 3.1 separately within that. Then I moved the AIAB install into the emulated hard drive space so that I could investigate what had gone wrong.
Once booted into the Amiga I inspected the AIAB installed files and sure enough many files and associated .info files were indeed none executable. This meant several Amiga files would not or rather could not run. There was a lot of these all over the install. I traced what had caused the error, or at least what I thought caused the errors. This was an Amiga batch file that changes the icon set used. It would seem that the AIAB author used the wrong switches for lzx. Or rather he missed or neglected to use one. Once I added the missing switch to the various icon set switching batch files on executing them they all worked as expected.

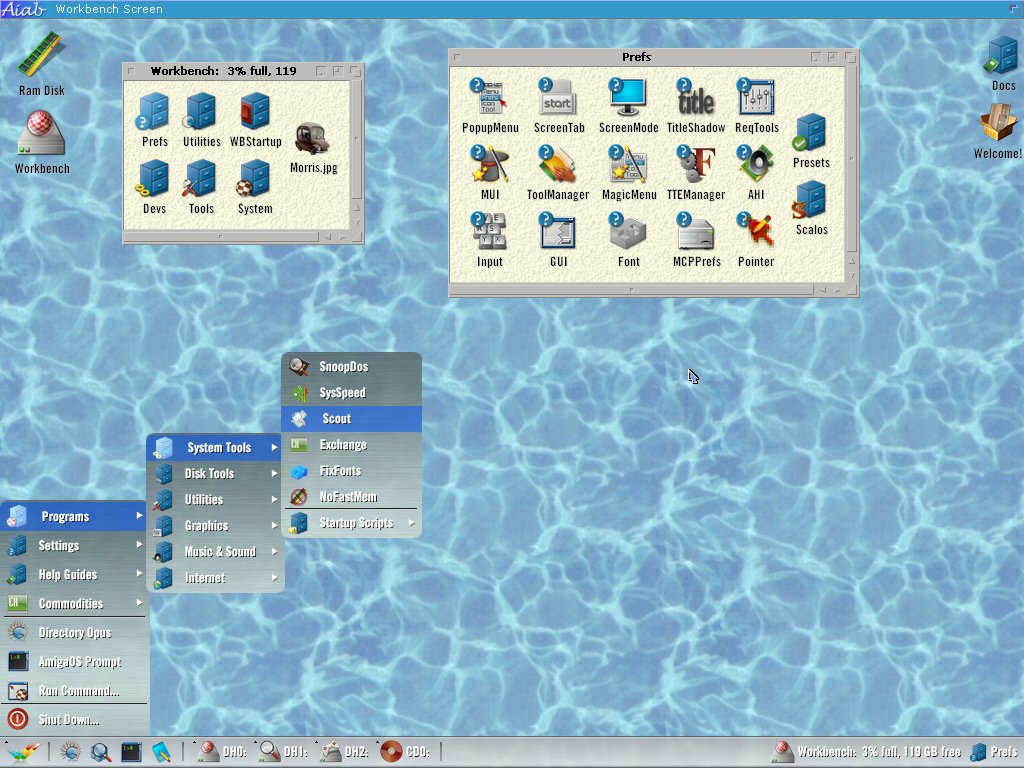

I finally was looking at the familiar Amiga Workbench screen in all its glory.
AmiSYS uses the hardfile approach but the expansion pack they have is simply a directory. Once I had extracted both AmiSYS files and pointed UAE and E-UAE at them it just worked. The emulated Amiga booted straight into an Internet capable Amiga Workbench. Wonderful stuff. It looked so much like my real A1200 install that I simply have to use it and I do in preference to my previously used AIAB.

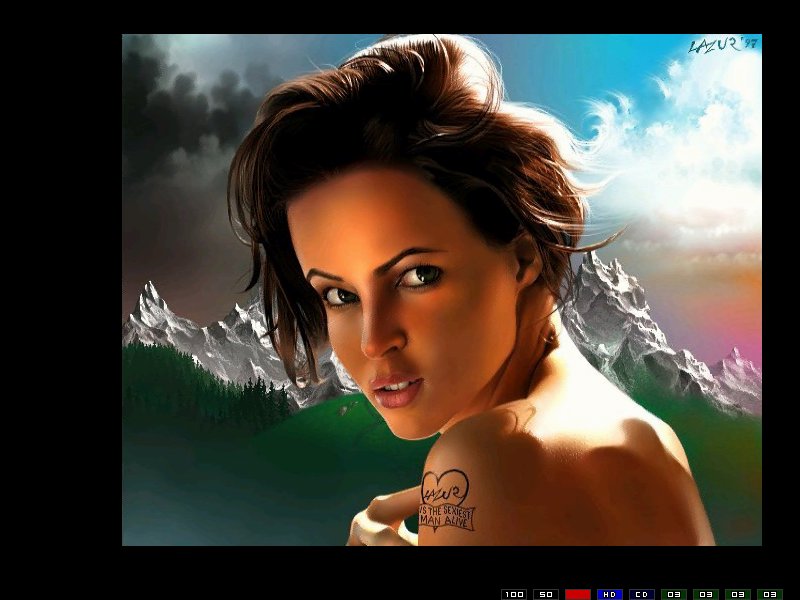

Here is a screenshot of AmiSys booting up the emulated Amiga.

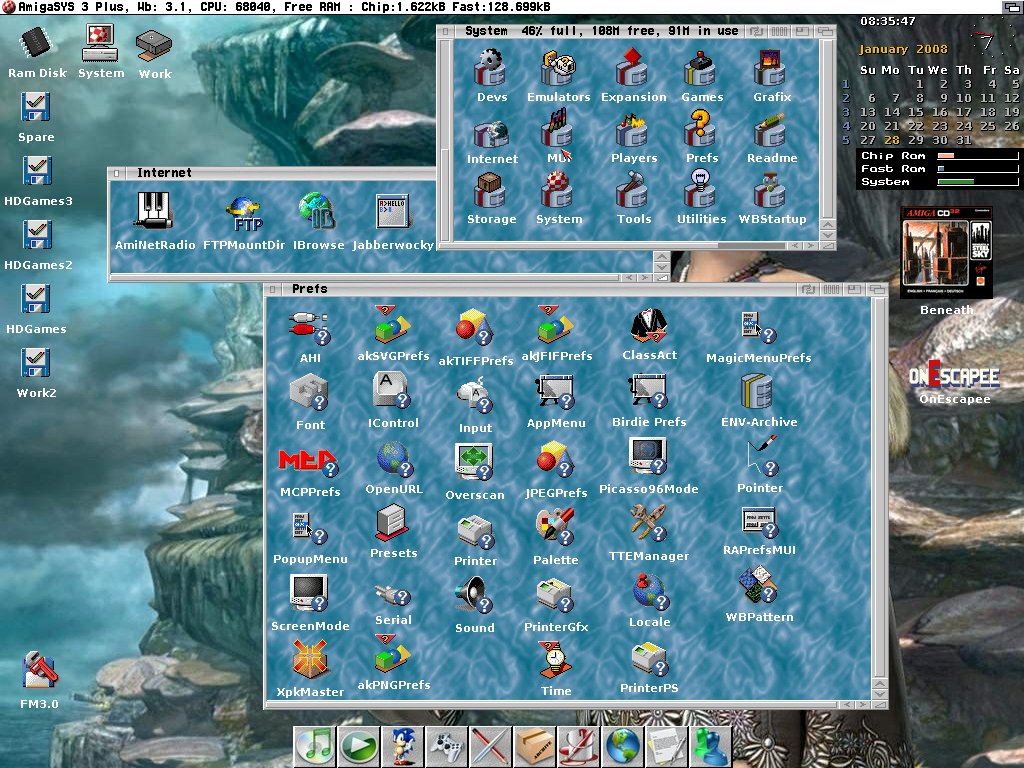

And here is another screenshot showing the emulated Amiga wih AmiSys installed.
Be aware that the boot up picture is random so the one you see may differ as of course, being randomised the picture changes each boot. Also, the background picture, while being mostly obscured, is different from the default AmiSys install.
After playing with both UAE and E-UAE I have to say both have their uses. For example, to create an Amiga hard drive I have to use UAE because E-UAE does not have the option to do this, leaning as it does to wards the directory on a linux drive. So, I fire up UAE, create the hardfile, save the settings then fire up E-UAE which sees the hard drive without problems.
Finally. There are two major players in the Amiga emulation arena, UAE and E-UAE and two major players in the pre-configured Workbench arena, AIAB and AmiSYS. If I was to give a preference as to which two of those four one should use I would need to be honest and say E-UAE and AmiSYS make for a better Amiga/Workbench experience. That said, all four could very easily be interchanged. For my day to day usage I use E-UAE for no other reason than its mouse tracker appears to work better. A minor thing you may think but the reality is that when working on the Amiga side and your mouse pointer is something like 2 inches from where the Linux mouse pointer is or points this makes part of the Amiga screen unaccessible until you realize that by getting the pointer as close as possible to the top-left of the Amiga screen and coming in at the same point off the Linux side means the pointer of the Amiga and the Linux pointer are once again in harmony.
On recompiling UAE this pointer nuisance mysteriously went away. Most puzzling, but something to bare in mind.
